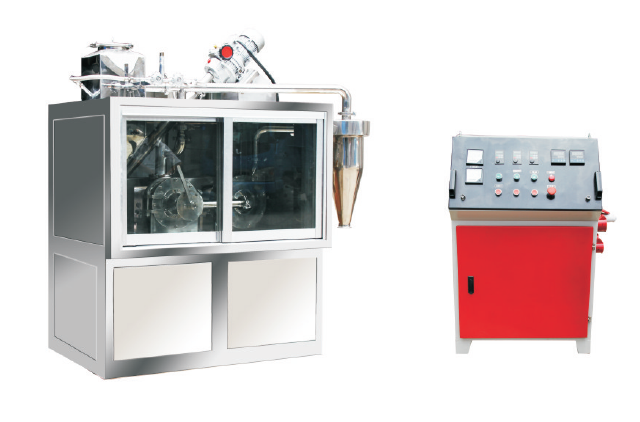

200 type cryogenic crusher

【working principle】
The cryogenic pulverizer system with liquid nitrogen as the cold source, crushed material through cooling at low temperature embrittlement is easy to crush, into mechanical crusher cavity through the high-speed rotating impeller in the body In the process of crushing materials, the cold source of the low-temperature flour mill system forms a closed circulation system, so that energy can be fully utilized and energy consumption can be saved: the temperature of the cold source for crushing can be reduced To minus 196 degrees, according to the brittle point temperature of the material, the temperature can be adjusted and controlled in the crushing process, the crushing temperature is selected, and the energy consumption is reduced: the crushing fineness can reach 10-700 meshes, even Reaching the fineness of micron U and the like: liquid ammonia is used as a grinding medium to realize the comprehensive effects of ultra-low temperature grinding, material explosion prevention, oxidation prevention and the like. The sieve classifier is graded and collected: the material return bin that does not meet the fineness requirement continues to be crushed.

【characteristics】
The cryogenic pulverizer system in the process of material crushing, the cold source to form a closed cycle system, make full use of the energy, save energy consumption: crush with cold source temperature can drop
To minus 196 degrees Fahrenheit, according to the material embrittlement point temperature, the temperature in the process of crushing, regulation of choosing the best grinding temperature, reduce the energy consumption: grinding fineness can reach 10-700 mesh, even
Reach micron u and so on: use liquid ammonia as the grinding medium to achieve ultra-low temperature crushing, material explosion, anti-oxidation and so on.

【usage】
The low-temperature pulverizer is a derivative product of a cryogenic pulverizer. Compared with the conventional pulverizer, the low-temperature pulverizer has the advantages of small volume, low loss, low energy consumption and simple operation, and is a pulverizer integrating yield and energy conservation in China. Machine. It is widely used in food industry, medicine industry and polymer material testing.

【technical parameters】
