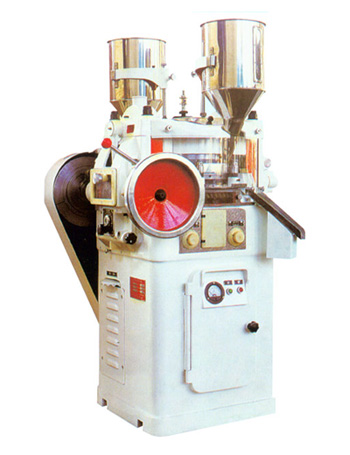

ZP33 Rotary Tablet Press

The machine used for a variety of granular materials will be pressed into a round sheet is suitable for mass production of basic equipment. The structure of double compression, there are two sets of pressure feeding device and two sets of wheels. Turntable 33 can be mounted to pay die, you can suppress the 66 week rotation. Pressure films turntable speed, depth of filling materials, pressed uniform thickness can be adjusted. Postponing the installation of mechanical machines can avoid the overload caused by mechanical damage. Machine is equipped with smoke powder box, run the machine through the nozzle can be lessons arising from dust, to avoid blocking and binding, and re-use of recyclable materials.

Technical Parameters：

Die Number (sets)	33
Maximum compressing pressure (kn)	40
Maximum tablet diameter (mm)	12
Maximum filling depth (mm)	15
Maximum tablet thickness (mm)	6
Wheel speed (r / min)	11-28
Capacity (pc / h)	43000-110000
Motor Power (kw)	2.2KW
Overall dimensions (L× W × H) (mm)	930×900×1600
Weight (kg)	850
